Multi Transfer Switch : MTS – RIELLO

Uninterruptible power supply is a device that reduces the risk of computer data damage from power failure or power outage. For the Data Center, there is another type of device that can also reduce the risk caused from power outages. It is an accessory for organizations that have redundant power supply, such as a building that has two power transformers or a building that has two Hot standby UPS. The Multi Transfer Switch (MTS) is capable of monitoring status of both power sources. It has the ability to transfer the power distribution of one source to another source automatically without interruption. So, there is no effect on the power usage of the computer or electrical equipment. We call this device Multi Transfer Switch or MTS, or some may have called Static Transfer Switch (STS)

RIELLO Multi Transfer Switch STS)-2

The Multi Transfer Switch (MTS) is responsible for automatically transferring the power source. When a power outage occurs at the main power source, MTS will automatically switch the backup power source to supply power immediately. There is no impact on electricity consumption and electrical loads. It will also transfer the electrical power back to the main power source when the main power source is ready to deliver power to the load

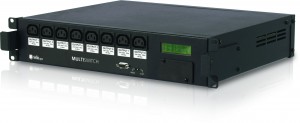

RIELLO Multi Transfer Switch STS)-1

The Multi Transfer Switch (MTS) sold by the company is widely used because RIELLO products are quality products and is manufactured in Italy. It is assured that when using MTS products from RIELLO, the power system will be more stable.

Static Transfer Switch (STS), the RIELLO product sold by the Company is detailed as follows:

Current range :    16 A
Voltage :    180 – 276 Vac
Frequency :    50/60 Hz
Input sockets :    Input sockets 2 IEC 320 (16 A)
Output socket :    8 ช่อง (IEC 320 10 A)
Current rating :    4 A (separate rating for each output)
Operating Temperature :    0 °C / +40 °C
Protection :    Overcurrent, Overvoltage, Undervoltage, Protection against energy back-feed
Communication :    RS232 port Ethernet port
IP rating :    IP20
